2WIN-S Plus: the Fast and Multifunctional A.I.-based Vision Analyzer

Screening Mode available on Kaleidos App!

Objective Refraction has never been so fast and pleasant

2WIN-S plus is the only vision screener that makes a complete binocular measurement of Objective Refraction, Amblyogenic Factors’ Screening and Anterior Segment Anomalies Screening in just 3 seconds. The patient’s eyes are analyzed at the same time in real life vision conditions, with no need of cycloplegic drops.

2WIN-S plus is controlled by a Remote Console, which gives you the opportunity to perform the measurement at a safety distance > 1 m from the patient.

This allows the operator to use the device at the distance that makes him more comfortable. 2WIN-S plus is also provided with hygienical masks that are sanitizable for multiuse purpose.

Thanks to its special Corneal Reflexes function, 2WIN-S plus is also able to detect possible phorias and tropias. The speed of operation and the variety of detected parameters make 2WIN-S plus the best solution to collect the highest number of information on the patient’s eyes reducing the examination time.

Technical information

EyeROBO®

2WIN-S plus is powered by EyeROBO®: an A.I. based platform that runs on top patented hardware, combining the widest range of eye examinations and technologies in the market, with a unique high-density storage solution for data management and inter-connectivity, addressed to specialists of the eye-care, eye-fashion and data collection.

Anterior Segment Screening

Anterior Segment Screening function is a complete A.I. system on the cloud for anomalies in the anterior segment of the eye. The A.I. algorithm running on the EyeROBO® platform is based on a Convolutional Neural Network and it has been trained on thousands of pupils.

The pupils’ images acquired by 2WIN-S plus during the measurement are instantly processed by the EyeROBO® platform and, if any anomaly of the anterior segment is detected, a warning is given to the operator with the indication of the eye, if right and/or left.

2WIN-S Plus is the device with the highest ROI in the market

Adaptica is working through business models to leverage the benefits 2WIN-S plus has in different fields. Thanks to the business studies we made in the past years, we focused to highlight the point of difference, the strengths the device has. For each field, 2WIN-S plus can help to increase the number of patients that need an examination. This is why we can define 2WIN-S plus as the device with the fastest ROI in the market.

Ophthalmologists

Fast and Accurate
No need of a skilled operator
Reduced exam time
Save office space
Data Collection: Unlimited CLOUD Storage
Immediate Referral: A.I. based screening function of Anterior Segment
Suitable for Kids
Integrated Refraction System
EMR Integration available

Optometrists

Fast and accurate: Reduced exam time
Portable: suitable for home visits and screening projects
Data Collection: Unlimited CLOUD Storage
Immediate Referral: A.I. based screening function of Anterior Segment
Durable and sturdy
Suitable for Kids
Costs saving
EMR Integration available

Pharmacies

Fully Automatic: anyone can do the measurement independently
Immediate Referral: A.I. based screening function of Anterior Segment
Fast: Complete measurement in just 3 seconds. Do it while you are in line
Easy to use: intuitive application
Data collector
EMR Integration available

Opticians

Fast and Accurate
No need of a skilled operator
Attractive design
Perfect Marketing tool
Reduced exam time
Save optical shop space
Suitable for Kids

Mass screening tests

Fast and Accurate
No need of a skilled operator
Attractive design
Reduced exam time by being quick and efficient
Suitable for Kids

NGOs

Portable
Durable and sturdy
Long-lasting batteries lives
Perfect for Screening programs
Data Collection: Unlimited CLOUD Storage
Immediate Referral: A.I. based screening function of Anterior Segment
Light independent, use it everywhere!
Suitable for Kids
No need of a skilled operator
Costs saving
EMR Integration available

Sport Vision

Allows to refract the patient in free posture
Fast: just 3’’ measurement
Binocular Refraction
Portable: take the measurement everywhere
No skilled operator needed
Data collector

Portable and fully automatic

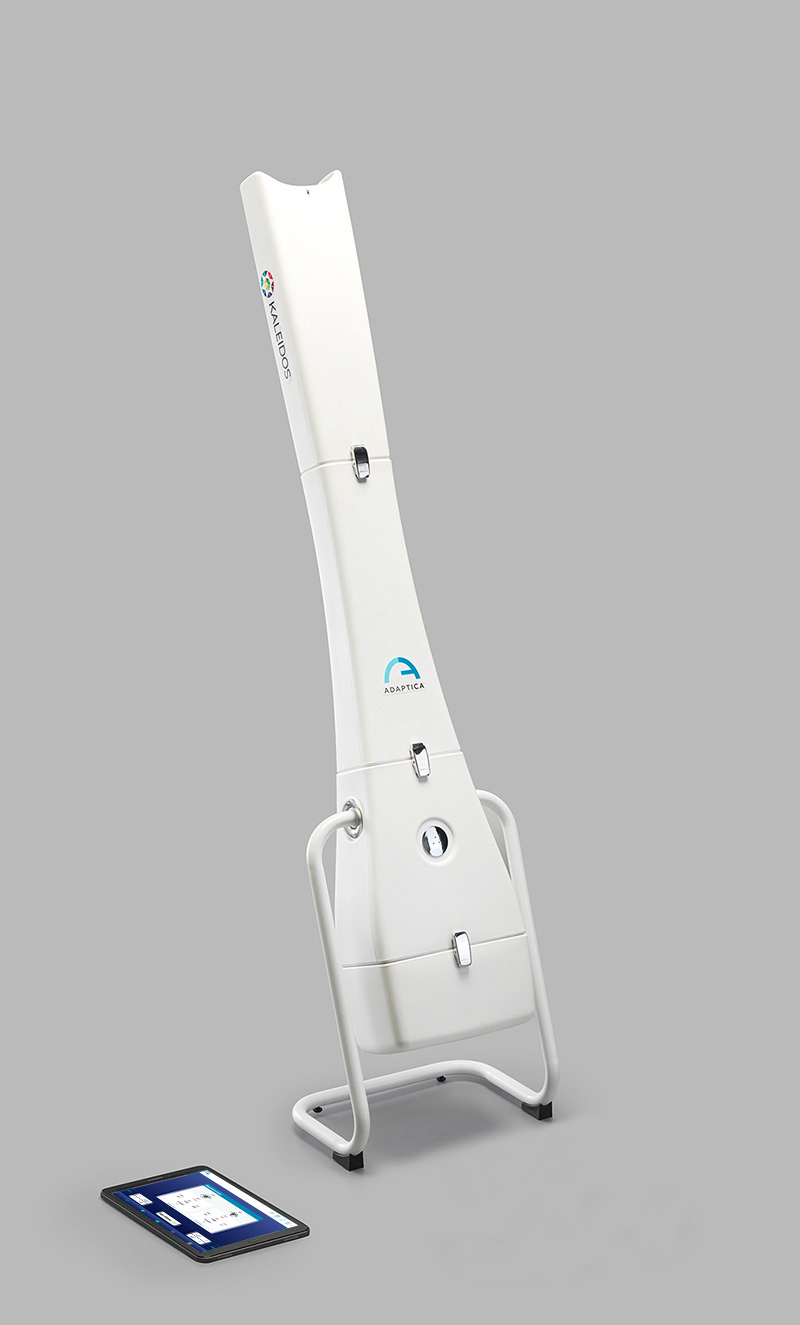

2WIN-S plus is remotely controlled by a user-friendly application running on a dedicated remote console. Its ease of use allows to delegate measurements also to a not specialized operator: the measurement is fully automatic and only requires the operator’s confirmation to start.

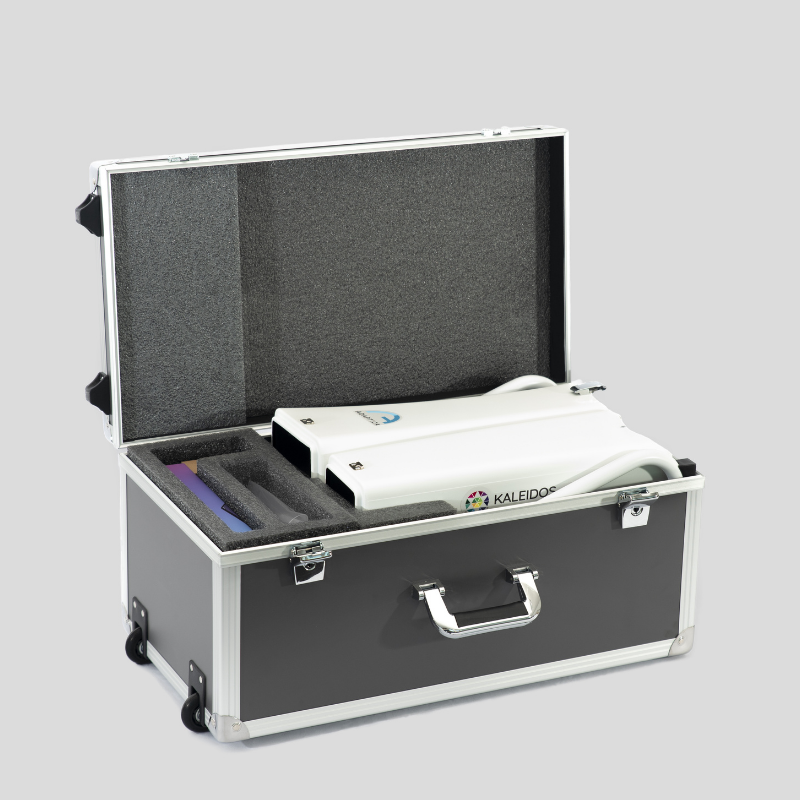

2WIN-S plus, thanks to a practical trolley suitcase, can be transported everywhere. The device serves as a portable dark room that allows the examination in any environment and light condition.

Technical Information

The perfect start to define the eyes’ necessary correction.

TARGET

Opticians & Optometrists – helps with practice efficiency
Ophthalmologists – working with infants, children and getting fast report for adults
Pediatricians – can screen infants and children
Mission trips – enables large scale screening and exams
Data Collection
Pharmacies
Sport Vision
Corporate Clinics – enables workforce screening
Schools – enables mass screenings

MEASUREMENTS

Binocular Refraction
Monocular Refraction
Pupil Distance
Pupil Size
Head Tilt
Direction of Gaze
Phorias and Tropias
Anterior Segment Anomalies

KEY FEATURES

Fully automated and easy to use
A.I. Based
Binocular refraction, with early detection of refractive errors
Anterior Segment screening
EMR compatibility
Dedicated tablet control
Fast measurement
Battery operated
No drops required
Customizable exam report

TECHNICAL & REGULATORY DOCUMENTATION

2WIN Technical Bulletin

KALEIDOS App Technical Bulletin

Common Vulnerabilities and Exposures PT

GDPR Compliance

Declaration of Conformity

SPECIFICATIONS

Operating mode: binocular/ monocular
Refraction measurement: automatic
Anterior segment screening: A.I. based, automatic
Corneal reflexes: detection of phorias and tropias up to 30 prism diopters
Sphere range: ±15 D; in the range ±7 D, step 0.25 D
from ±7 D to ±15 D, step 0.50 D
Cylinder range: ±5 D
Cylinder axis: 1°–180°, step 1°
Pupil size: auto detection, 4–11 mm, step 0.1 mm
Pupil distance: auto detection, 30–120 mm, step 0.1 mm
Fixation target: built-in
Acoustic target: built-in
Remote control: dedicated remote console
Connectivity: Bluetooth
User interface: Android application providing remote control, live streaming, data management
Data interface: Bluetooth, Wi-Fi, internal microSD card
Data management: cloud-storage compatible system
EMR integration: shared folder, customizable
Printer interface: through the remote console (Wi-Fi, Bluetooth, email)
Total size (cm): 130 x 32 x 21.5
Tube size (cm): 119 x 23 x 15

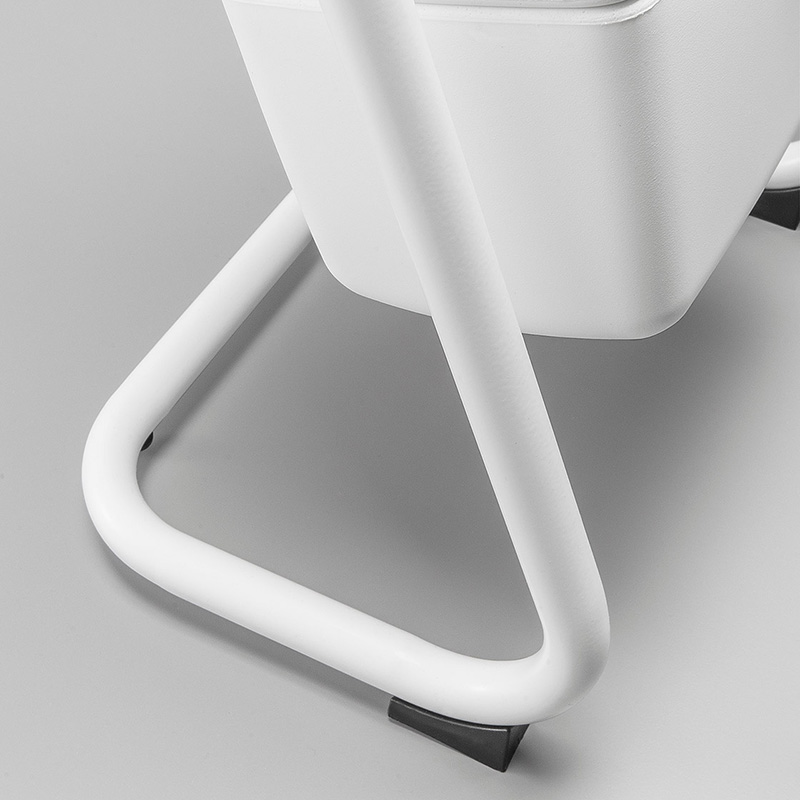

Metal stand size (cm): 45 x 32 x 21,5
Max height operation system: 130 cm
Net weight: 5,5 kg
Power: rechargeable battery pack, 50 Wh
Battery charge: AC/DC medical power supply 18 V, 40 W
